The Sennheiser XSW-D PRESENTATION BASE SET is an easy entry point into the world of wireless microphone audio for speakers, educators, panellists, and moderators looking for a stage-ready system that's both cost-effective and simple to use. It puts world-renowned Sennheiser wireless sound quality in a miniaturized, plug-and-go, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, streamlining your setup so you can concentrate on delivering your message to your audience with confidence.

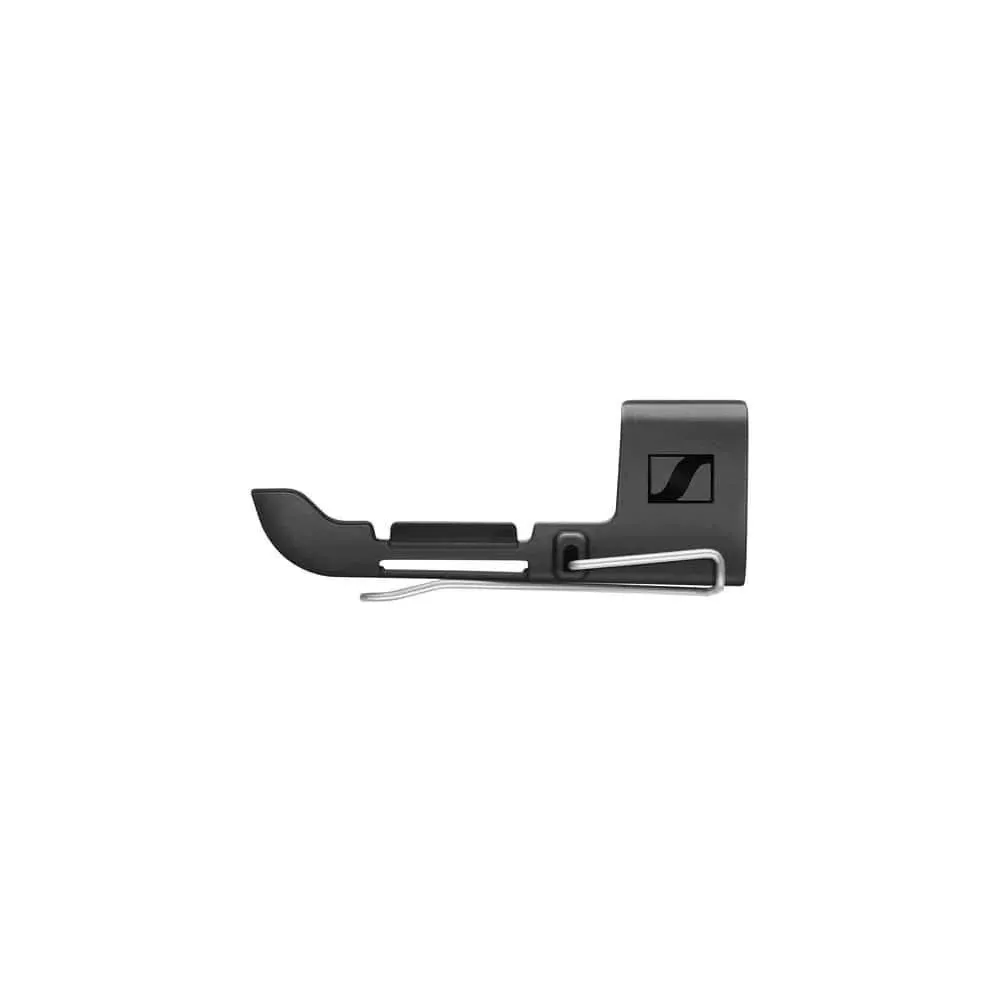

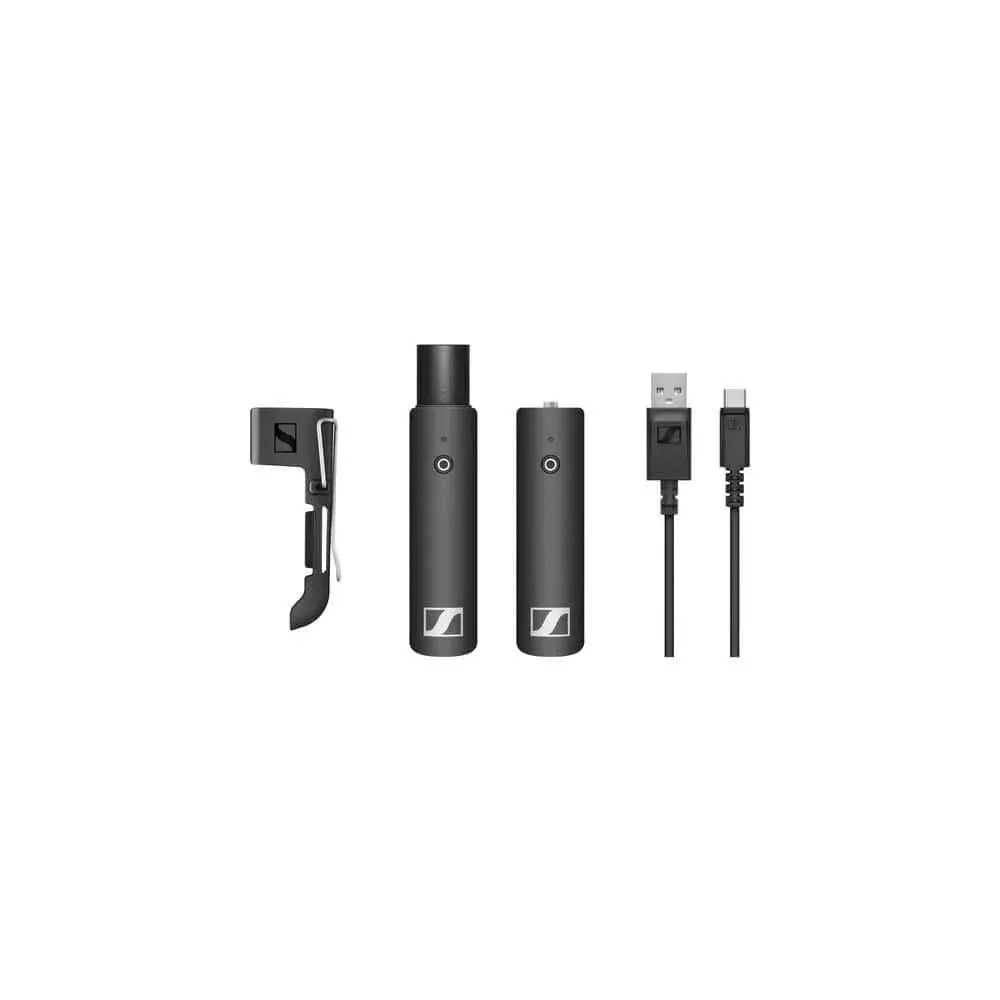

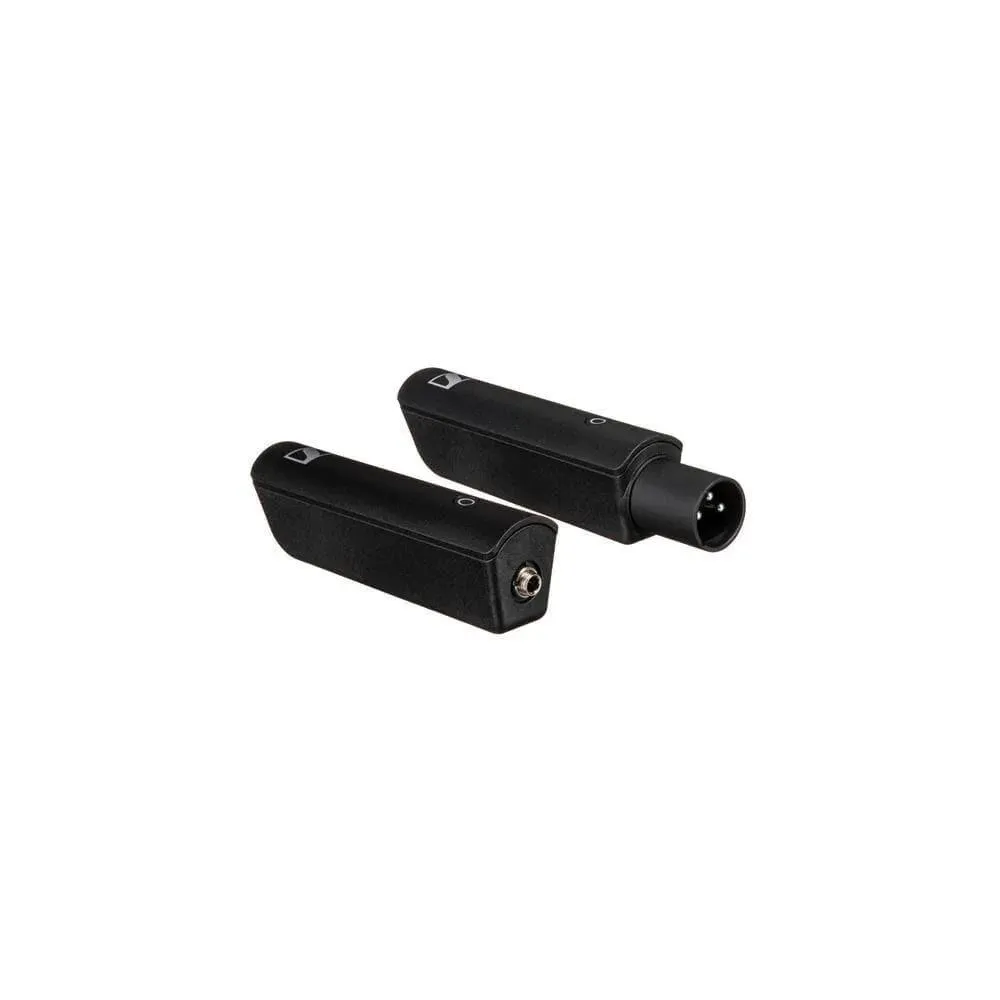

The Sennheiser XSW-D PRESENTATION BASE SET comes with a bodypack transmitter ready to be used with either a lavalier or headset mic of your choice, giving you the hands-free convenience of a clip-on microphone. The XLR-equipped, plug-in receiver connects to a wide range of professional audio gear including mixing boards and portable PA systems, allowing you to capture crisp-sounding speech in lecture halls, houses of worship, or conference rooms.
Features
- Public Speaking, Presentations, Lectures
- Bodypack Transmitter with No Microphone
- Plug-In Receiver
- Protected Peer-to-Peer Connection
Tech Specs
| System |
| Frequency Range 2.400 to 2.483 GHz |
| Latency |
| Transmission Range 250' / 76.2 m (Line of Sight) |
| Simultaneous Operation of Units Up to 5 Systems Simultaneously |
| Frequency Response 80 Hz to 18 kHz |
| Signal-to-Noise Ratio ≥106 dB |
| THD |
| Modulation GFSK with TDMA |
| Operating Temperature -10 to 55° C / 14 to 131° F |
| Relative Humidity 95% (Non-Condensing) |

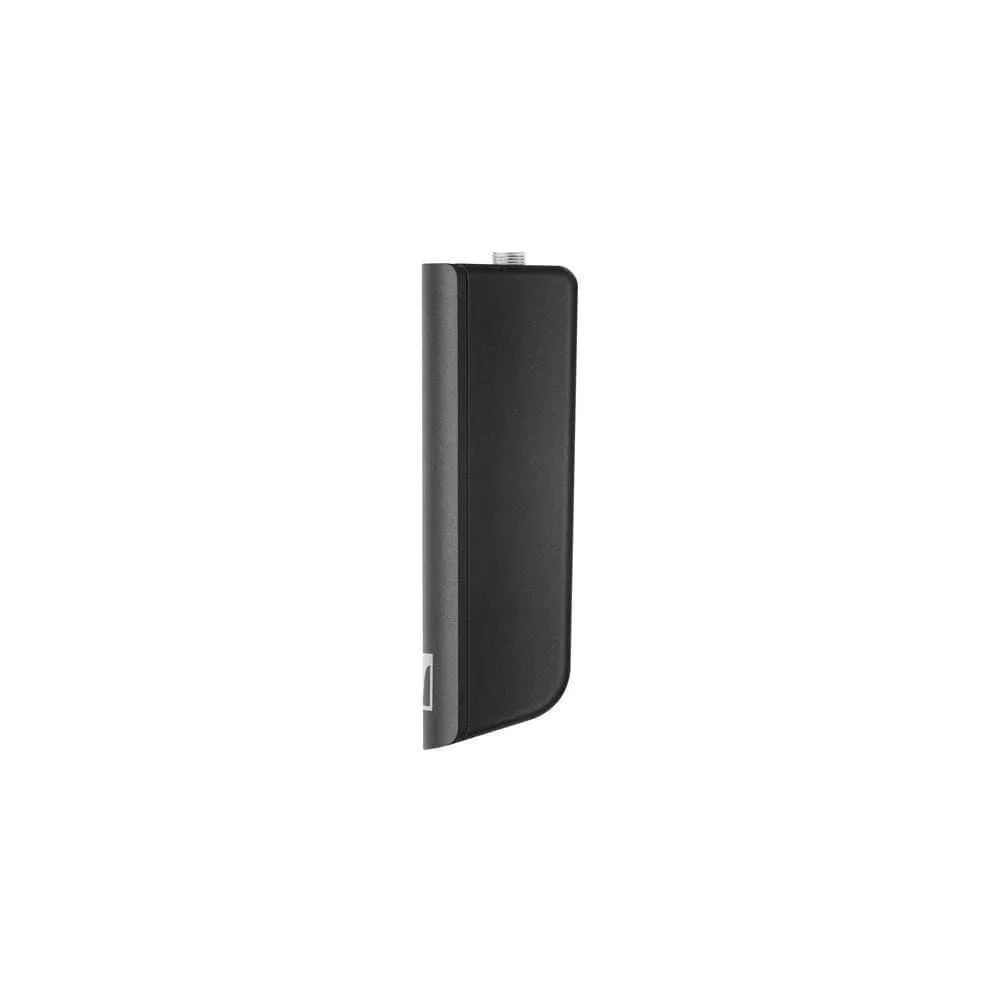

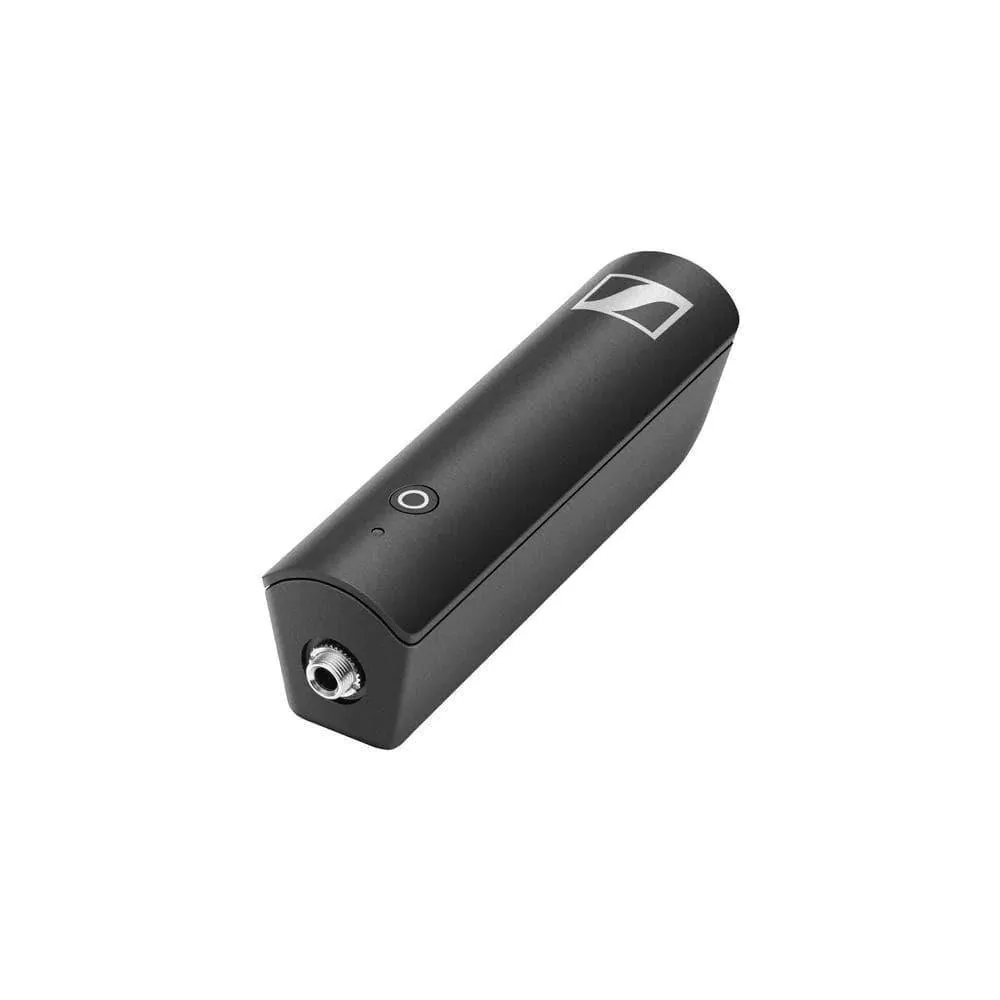

| Transmitter |
| Type Bodypack Transmitter |
| Input Connector 1/8" / 3.5 mm TRS, Locking |
| RF Output Power 10 mW, Maximum (EIRP) |
| Input Sensitivity Mic-Level Input Only |
| Battery Type: Built-In, USB-Rechargeable, Lithium-Ion |
| Battery Life: 5 Hours |
| Charging Time: 3 Hours (Typical) |
| Charging Cycles: Up to 1000 Cycles |
| Nominal Voltage: 3.7 V |
| Cell Capacity: 850 mAh |

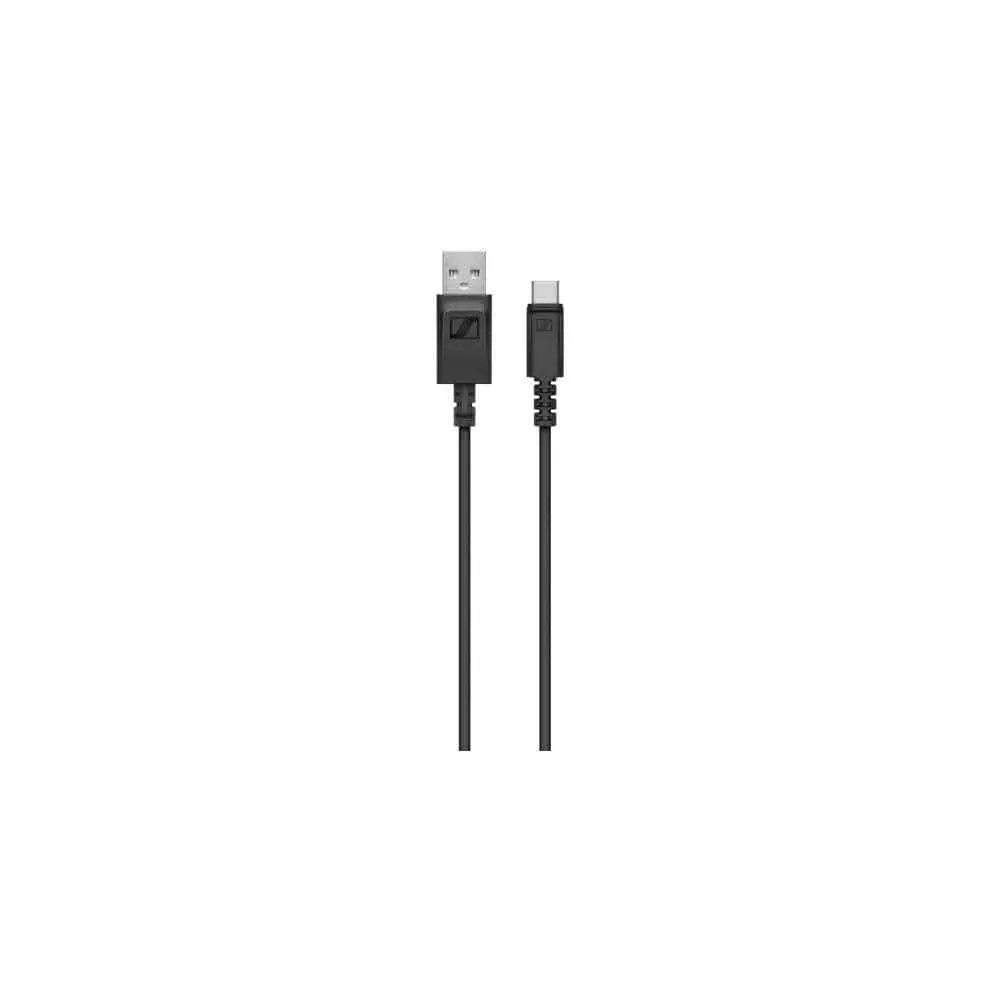

| Input Voltage: 5.0 V (Typical) |
| Charging Temperature: 32 to 140° F / 0 to 60° C |
| Dimensions 3.4 x 0.9 x 1.1" / 86 x 24 x 28 mm |
| Weight Not Specified by Manufacturer |

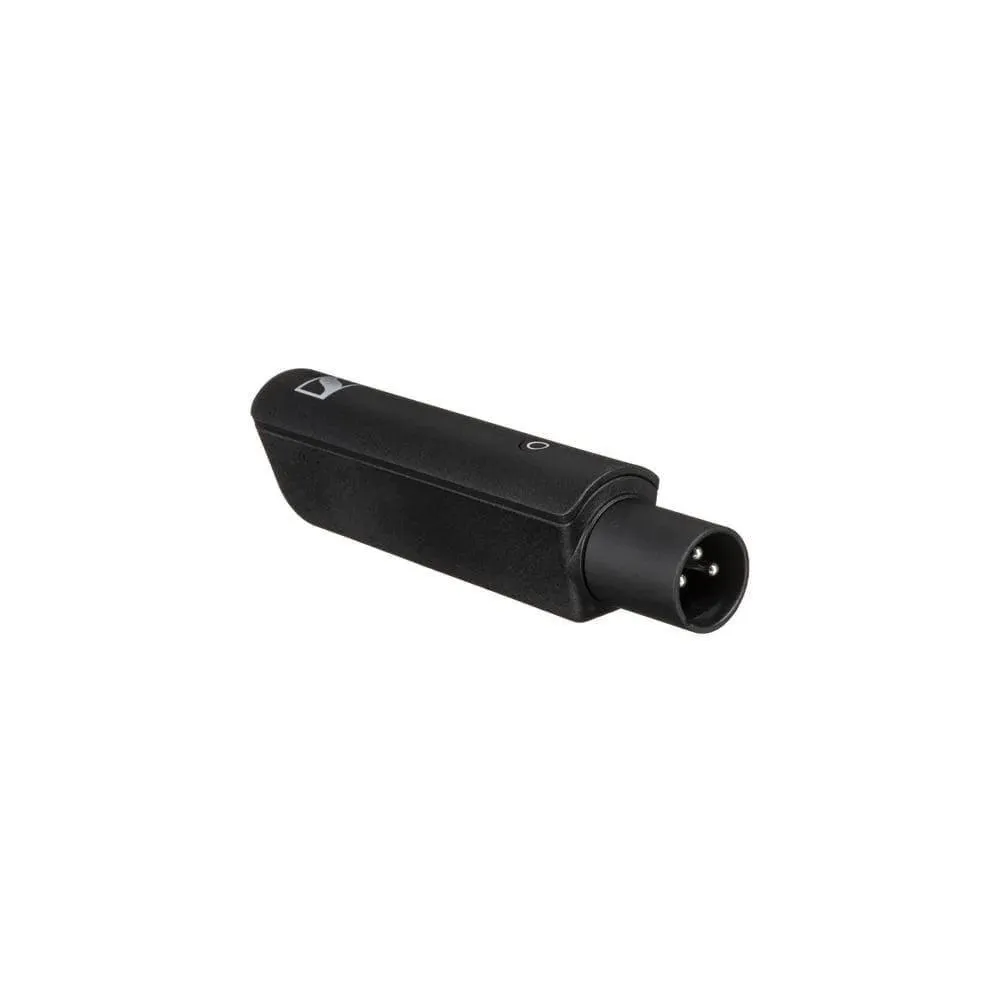

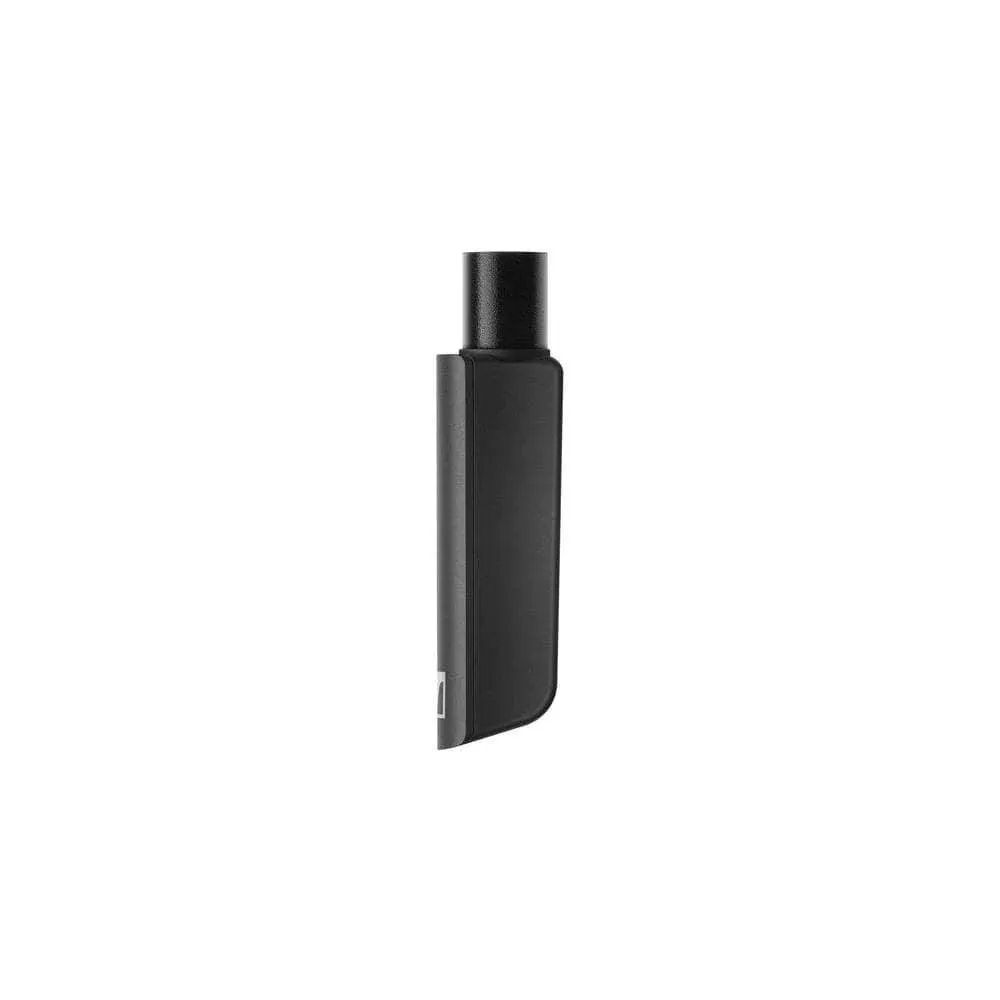

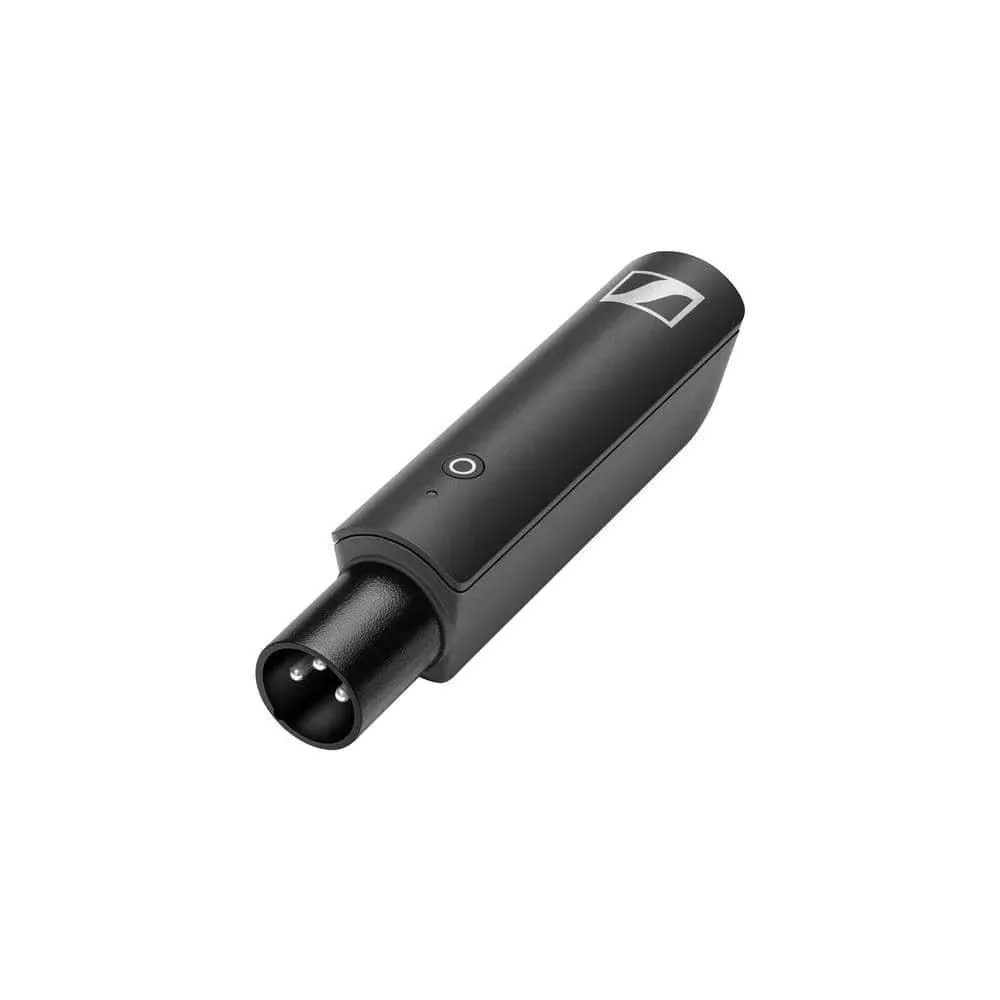

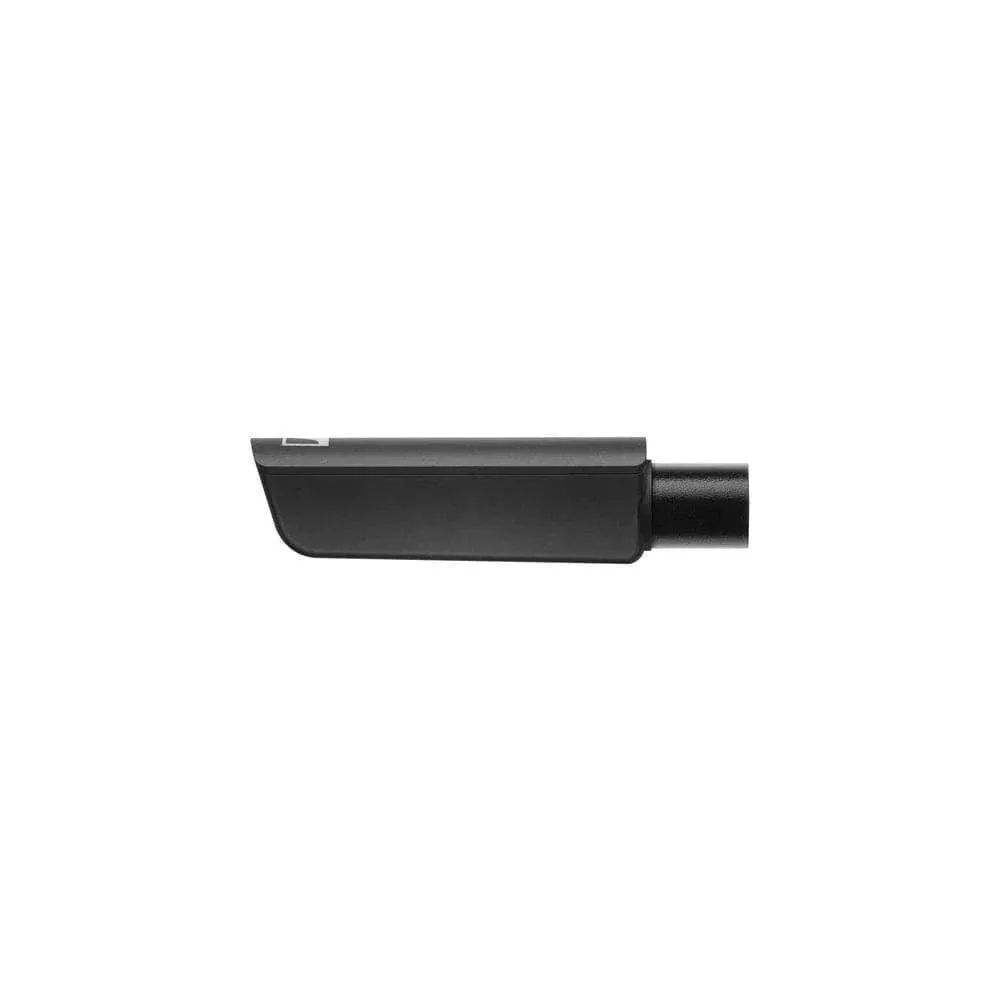

| Receiver |
| Type Plug-In |
| Output Connector XLR-Male |
| Audio Output Level Consumer Line-Level Output Only: -12 dBu (Maximum) |
| Battery Type: Built-In, USB-Rechargeable, Lithium-Ion |
| Battery Life: 5 Hours |
| Charging Time: 3 Hours (Typical) |
| Charging Cycles: Up to 1000 Cycles |
| Nominal Voltage: 3.7 V |
| Cell Capacity: 850 mAh |
| Input Voltage: 5.0 V (Typical) |
| Charging Temperature: 32 to 140° F / 0 to 60° C |
| Dimensions 4.3 x 0.9 x 1.1" / 109 x 24 x 28 mm |
| Weight Not Specified by Manufacturer |
| Packaging Info |
| Package Weight 0.7 lb |
| Box Dimensions (LxWxH) 9.7 x 4.8 x 2.1" |
